S 83 CEN  Center Speaker

S 83 CEN  Center Speaker

Black (# 1064330)
White (# 1064377)
Walnut (# 1064584)

Designed to deliver incredible acoustics for larger rooms, the S 83 CEN is engineered for clear, balanced dialogue reproduction, making it an ideal center channel for a premium surround sound system. Leveraging WaveGuide acoustic technology, frequencies in the vocal range are sent directly to the listening area for lifelike sound.

  • Optimum dialogue reproduction
  • Elegant, contemporary design
  • Designed for larger rooms
  • WaveGuide acoustic technology
  • Seamless magnetic grille
  • 25MM (1") soft dome tweeter
  • Dual 127mm (5") polyfiber woofers

S 81 83 Cen 4


The 25mm (1”) soft dome tweeter provides smooth, refined high frequencies, with dual 127mm (5”) polyfiber woofers for balanced, dynamic low end. The integrated WaveGuide focuses the high frequency sound for dynamic, true-to-life reproduction, while the rear-firing slot port allows for better low frequency extension.

S 81 83 Cen 1


The new Jamo Studio 8 series has been completely reimagined to live seamlessly in modern, premium environments. Contemporary material and finish choices accentuate the clean, minimalist lines of this European design, while the compact cabinet designs are an ideal solution for urban living environments around the world.

S 81 83 Cen 6


Fully magnetic grille – no mounting holes or push pins – for a clean, minimalistic front baffle design, while the large woven linen grille cloth creates visual interest with heavy texture.

S 81 83 Cen 2

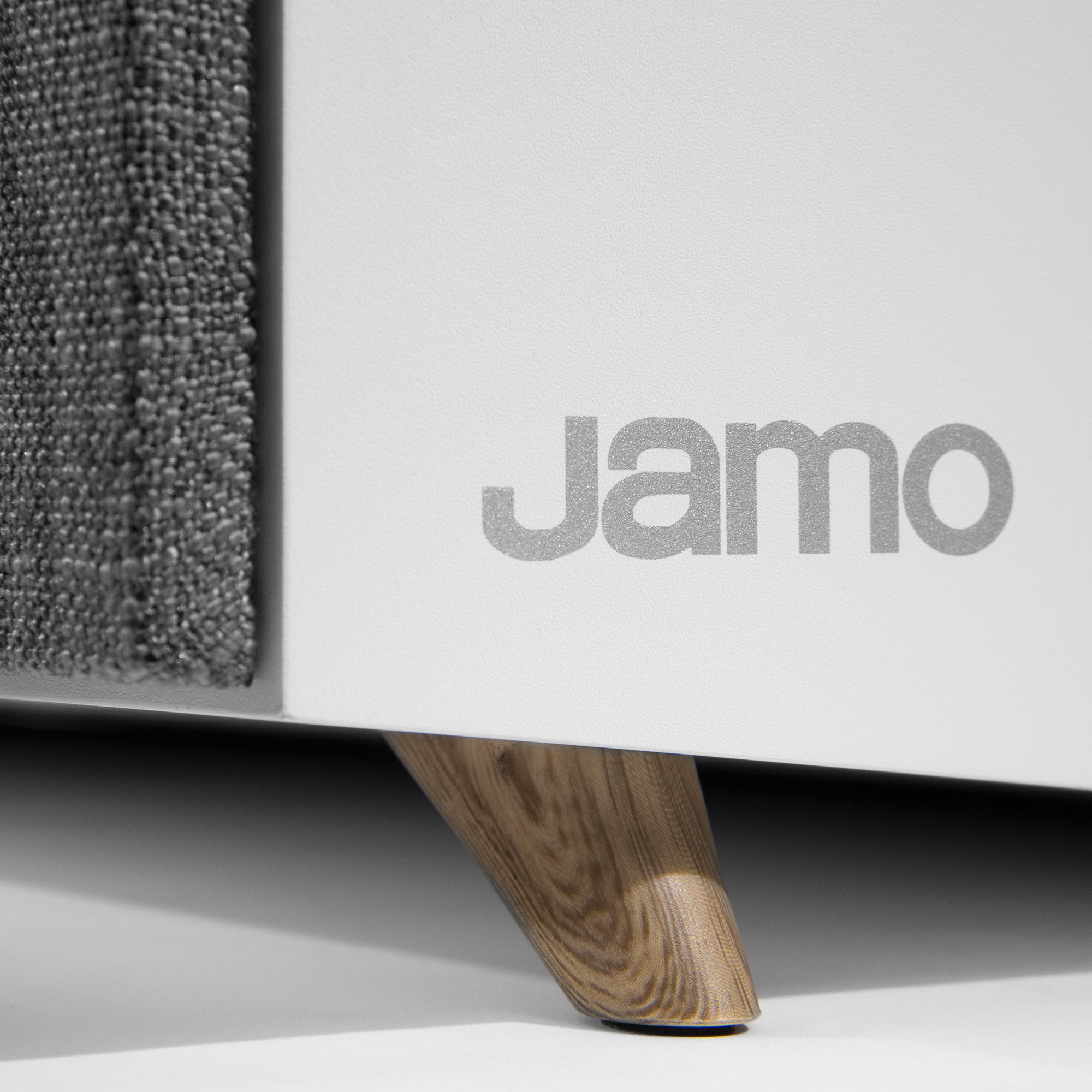

Wood accents give handcrafted, natural look



Frequency Response  65Hz - 26kHz (+/- 3dB)
Sensitivity  87dB (2.83V @ 1m)
Power Handling  80W / 160W
Impedance  8 Ohm
High Frequency Driver  25mm (1”) Soft Dome Tweeter
Low Frequency Driver  2 x 127mm (5”) Polyfiber Woofers
Crossover Frequency  2kHz
Speaker Enclosure  MDF
Enclosure Type  Bass Reflex via Rear Firing Slot Port
Inputs  Single Binding Posts
Finish  Black, Walnut, White
Dimensions  215mm x 498mm x 245mm 8.46” x 19.61” x 9.65”
Features:  Fills Medium-Large Size Rooms
Weight  15 lb (6.8 kg)
