S 83 CEN  Center Speaker

S 83 CEN  Center Speaker

Black (# 1064330)
White (# 1064377)
Walnut (# 1064584)

Designed to deliver incredible acoustics for larger rooms, the S 83 CEN is engineered for clear, balanced dialogue reproduction, making it an ideal center channel for a premium surround sound system. Leveraging WaveGuide acoustic technology, frequencies in the vocal range are sent directly to the listening area for lifelike sound.

  • Optimum dialogue reproduction
  • Elegant, contemporary design
  • Designed for larger rooms
  • WaveGuide acoustic technology
  • Seamless magnetic grille
  • 25MM (1") soft dome tweeter
  • Dual 127mm (5") polyfiber woofers



S 81 83 Cen 4

PREMIUM PERFORMANCE

The 25mm (1”) soft dome tweeter provides smooth, refined high frequencies, with dual 127mm (5”) polyfiber woofers for balanced, dynamic low end. The integrated WaveGuide focuses the high frequency sound for dynamic, true-to-life reproduction, while the rear-firing slot port allows for better low frequency extension.


S 81 83 Cen 1

COMPLETELY NEW, COMPLETELY MODERN

The new Jamo Studio 8 series has been completely reimagined to live seamlessly in modern, premium environments. Contemporary material and finish choices accentuate the clean, minimalist lines of this European design, while the compact cabinet designs are an ideal solution for urban living environments around the world.


S 81 83 Cen 6

MAGNETIC GRILLE

Fully magnetic grille – no mounting holes or push pins – for a clean, minimalistic front baffle design, while the large woven linen grille cloth creates visual interest with heavy texture.


S 81 83 Cen 2

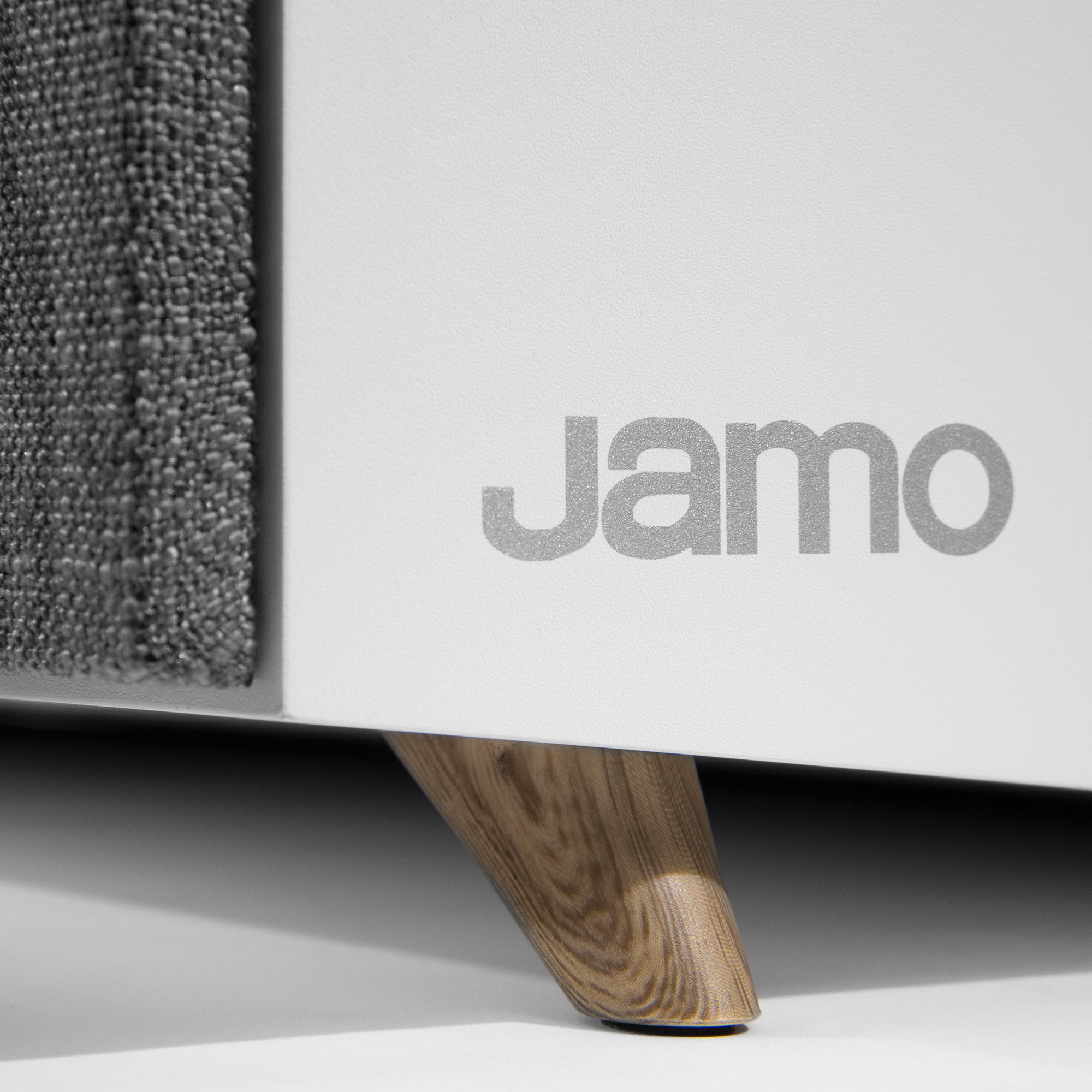

ORGANIC FEATURES

Wood accents give handcrafted, natural look

Specs

SPECIFICATIONS

Frequency Response    69Hz - 26kHz (+/- 3dB)
Sensitivity    87dB (2.83V @ 1m)
Power Handling    80W / 320W
Impedance    8 Ohm
High Frequency Driver    25mm (1”) Soft Dome Tweeter
Low Frequency Driver    2 x 127mm (5”) Polyfiber Woofers
Crossover Frequency    2kHz
Speaker Enclosure    MDF
Enclosure Type    Bass Reflex via Rear Firing Slot Port
Inputs    Single Binding Posts
Finish    Black, Walnut, White
Dimensions    215mm x 498mm x 245mm 8.46” x 19.61” x 9.65”
Features:    Fills Medium-Large Size Rooms
