JDA-500  DSP Amplifier

JDA-500  DSP Amplifier

Jda 2

Design

The Jamo JDA-500 offers legendary Jamo power and performance in a sleek, high-tech, 1 rack unit solution. The JDA-500 offers 500W of class G/H power, for clean, dynamic power in any type of install.

From small residential systems to massive commercial installs, the JDA-500 is designed for maximum install flexibility - offering low impedance and 70V/100V compatibility for distributed line applications.

Jda 3

Technology

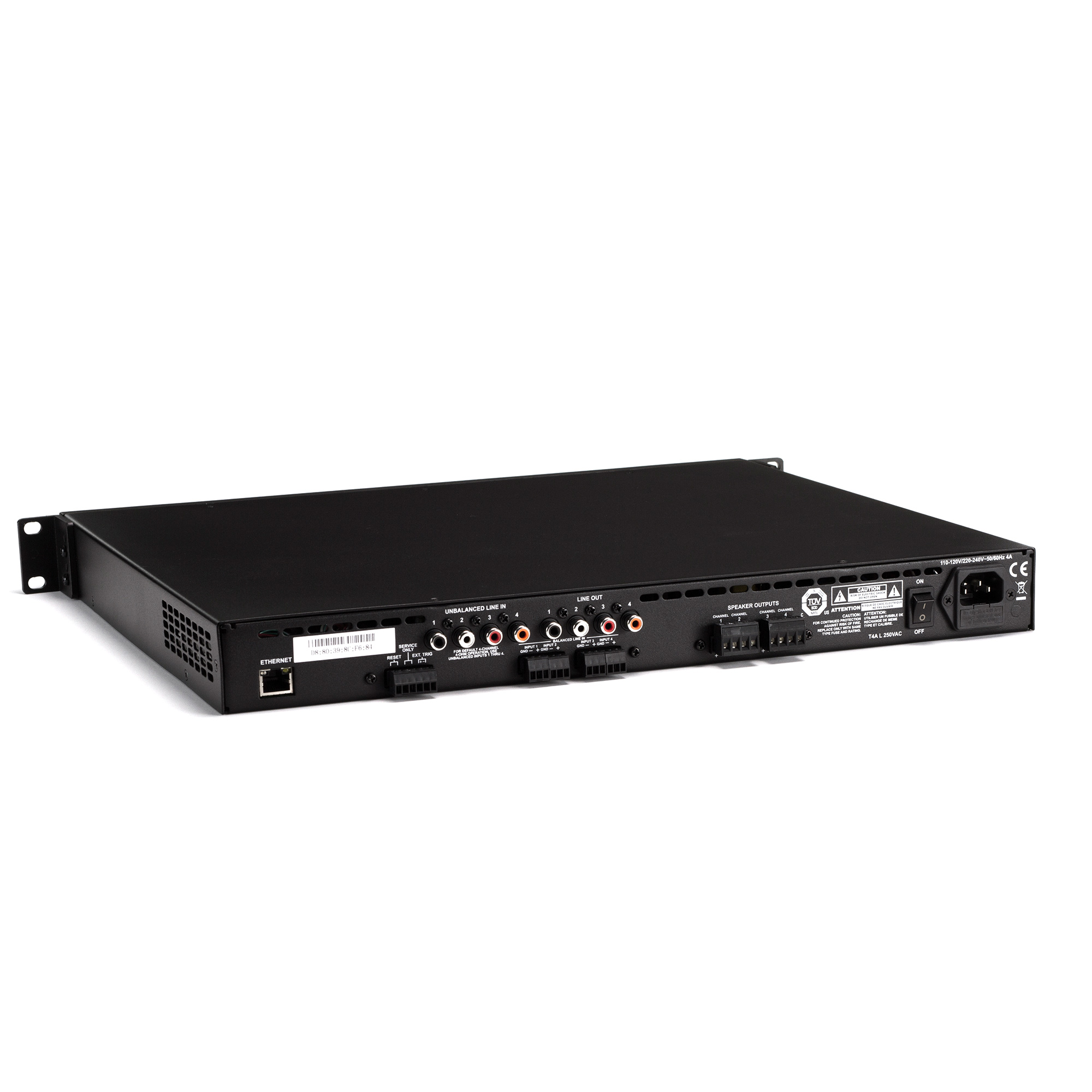

The JDA-500 boasts fully matrixed 4x4 I/O with fully balanced Phoenix and unbalanced RCA inputs, as well as Phoenix speaker outputs capable of connecting up to 12-gauge wire. The myriad I/O, impedance, and acoustic settings are fully matrixed and customizable through the web-based, easy to use, streamlined DSP menu. In addition to password protected channel assignments, gain settings, EQ, and limiting, the DSP provides presets for almost every Jamo speaker on the market - optimizing acoustic performance and power handling for these products with a single click. Accessing the DSP wirelessly with a tablet, smartphone, or computer is also quick and easy when the JDA-500 is plugged into the network's wireless router.

Specs

SPECIFICATIONS

Signal to Noise    -100dB Below Rated Output
Rack Unit    1RU
Outputs    4 x Phoenix Speaker Level (up to 12 AWG wire),4 x RCA Line Level (Throughs)
Dimensions    44mm x 483mm x 363mm(1.73" x 19.02" x 14.29")
Amplifier Power Output    500W Total System Power4 x 125W Per Channel
Subwoofer Dimensions    6.82 kg (15 lbs)
Input Sensitivity    750mV Balanced, 0dBU
THD    <1% @ Rated Output
Input Impedance    Balanced 40k
Inputs    Balanced: 4 x Phoenix Line Level (up to 12 AWG wire), Unbalanced: 4 x RCA Line Level
Speaker Enclosure    Front Face: ABS PlasticCase: Machine Formed Steel
Amplifier Type    High Efficiency Class G/H
Mounting Options    Removable 1RU Rack Ears, Removable Rubber Feet
